Forged Hollow Bar,Inconel 718 Hollow Bar

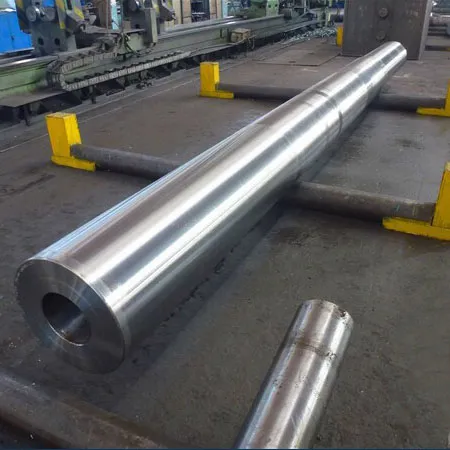

Forged Hollow Bar

Our custom-made hollow forged bars are a higher quality substitute for heavy wall steel pipe and mechanical tubing.
They can replace centrifugal castings that often do not meet internal strength and integrity desired.
At Shiney Steel, we can forge hollows with special configurations and geometries such as squares with a hole in the center, or hollows with different sizes on the outside diameter.

Hollows Process Highlights

Forging a hollow tube begins by making an upset preform, then punching a hole through the center. The preform is then drawn out over a mandrel to the specified length and O.D./I.D. configuration.

Various Shapes
Hollows can be produced not only in a straight cylindrical shape but with unlimited variations of O.D.s and I.D.s, including tapers. We also provide closed-end cylinders, both with and without flanges, in various wall thicknesses and cylinder end configurations to accommodate our customers' requirements.

Forged Hollows Time & Cost Savings
Because the inside diameter of the hollow is forged rather than bored from a solid bar, Shiney Steel eliminates the need for additional machining, customers save time, money and reduce material waste.

Common Material Grades

Learn about the essential materials for forged hollow bars, chosen for their strength, durability, and suitability for various industrial applications.
Stainless Steel	303 Stainless Steel	304 Stainless Steel	316 Stainless Steel	410 Stainless Steel	420 Stainless Steel
	430 Stainless Steel	434 Stainless Steel	17-4 PH Stainless Steel	15-5 PH Stainless Steel	13-8PH Stainless Steel
	2205 Duplex Steel	S31803 Duplex Steel	S32750 Duplex Steel	S32760 Duplex Steel
Alloy Steel	4130 Alloy Steel	4140 Alloy Steel	4340 Alloy Steel	AISI 4145 Alloy Steel	SCM440 Alloy Steel
Carbon Steel	AISI 1018	AISI 1020	AISI 1045	AISI 1050	AISI 1060
Carbon Steel	AISI 1075	AISI 1080	AISI 1095	A36 Carbon Steel
Nickel Alloy	Inconel 625	Inconel 718	Inconel 725	Hastelloy C-276	Hastelloy B-2
	Monel K-500	Inconel 716	Inconel 713C	Incoloy 800	Incoloy 825
	Nimonic 80A	Nickel 200	Incoloy 925	Monel 400	Alloy 28
Superalloy	Haynes 188 Superalloy	A-286 Superalloy	Nitronic 50 Superalloy
