Turbine Engine Investment Casting

We specialize exclusively inhigh-temperature nickel-based and cobalt-based superalloysdesigned for extreme environments.

Nickel-Based Superalloys

Alloy	UNS / AMS Designation	Typical Chemical Composition (wt%)	Typical Applications
Inconel 718	UNS N07718 / AMS 5662	Ni balance, Cr 17–21, Fe balance, Nb+Ta 4.75–5.5, Mo 2.8–3.3, Ti 0.65–1.15, Al 0.2–0.8	Structural hot section parts, shafts, supports
Inconel 625	UNS N06625 / AMS 5666	Ni ≥58, Cr 20–23, Mo 8–10, Nb+Ta 3.15–4.15	Exhaust systems, ducts, corrosion-resistant hot gas components
Inconel 713C	AMS 5391	Ni balance, Cr 12–14, Al 5.5–6.5, Ti 0.5–1.0, Nb ~2	Turbine blades, vanes, hot section castings
Rene 80	AMS 5544	Ni balance, Cr ~14, Co ~9, Al ~3, Ti ~5, W ~4	High-temperature turbine blades and rotating components
Hastelloy X	UNS N06002	Ni balance, Cr 20–23, Fe 17–20, Mo 8–10, Co ≤2	Combustor components, transition ducts, burner systems

Cobalt-Based Superalloys

Alloy	UNS Designation	Typical Chemical Composition (wt%)	Typical Applications
Haynes 188	UNS R30188	Co balance, Cr 20–24, Ni 20–24, W 13–16	Combustor liners, high-temperature structural parts
Stellite 6	UNS R30006	Co balance, Cr 28–32, W 3–5, C 1–1.4	Wear surfaces, seals, valve components

All materials are supplied with full heat traceability and certified chemical composition (AMS / ASTM standards).

Our investment casting process is scalable to both precision small components and medium-to-large turbine structural parts.

» Casting weight: from a few grams up to 100 lbs (45 kg) or higher depending on geometry and alloy system
» Minimum wall thickness: 0.040" – 0.080" (application dependent)

» Linear dimensional tolerance:

•     Up to 1": ±0.005"
•     Above 1": ±0.003" incremental tolerance

Process simulation and controlled solidification techniques are applied for complex geometries to ensure casting integrity, shrinkage control, and dimensional stability.

Our superalloy investment castings are used across multiple turbine-related industries:

Aerospace & Aviation

    » Jet engines
    » High-bypass turbofan engines
    » Turboprop engines
    » Auxiliary power units (APU)

Power Generation

    » Industrial gas turbines
    » Combined cycle power plants
    » Stationary turbine systems for electricity generation

Industrial & Mechanical Systems

    » Mechanical drive turbines
    » Compressor-driven turbine systems
    » High-temperature energy conversion systems

Marine & Defense Systems

    » Marine gas turbines
    » Naval propulsion systems

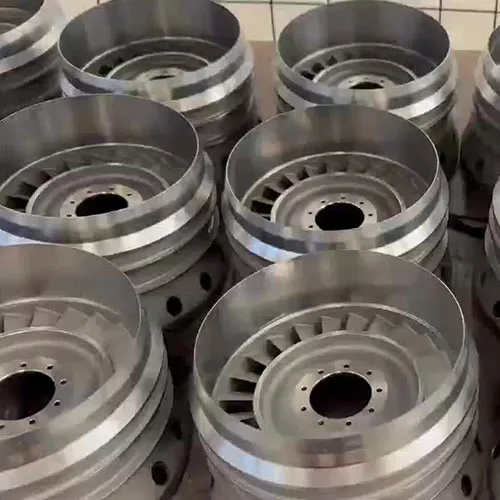

We manufacture a wide range of precision superalloy components:

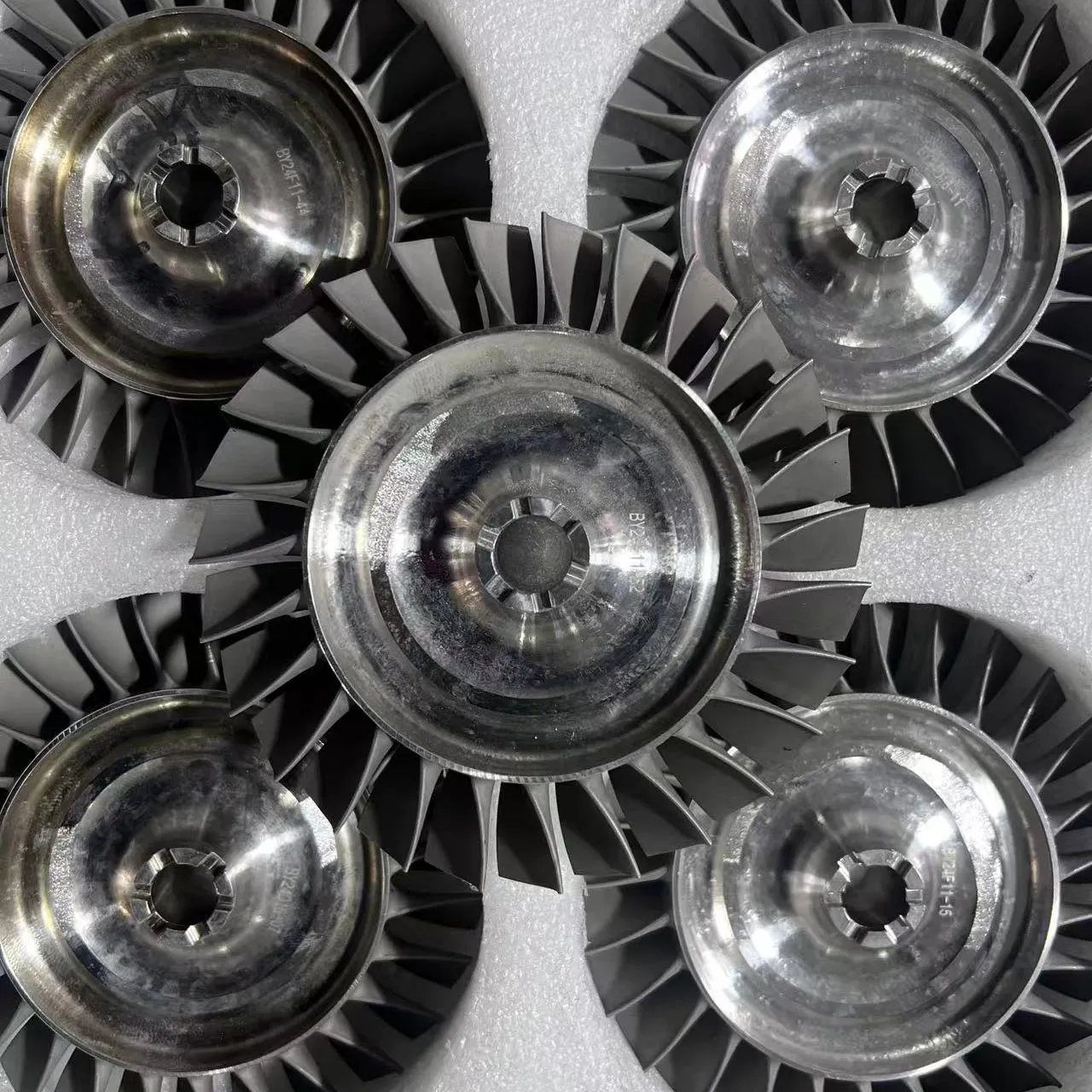

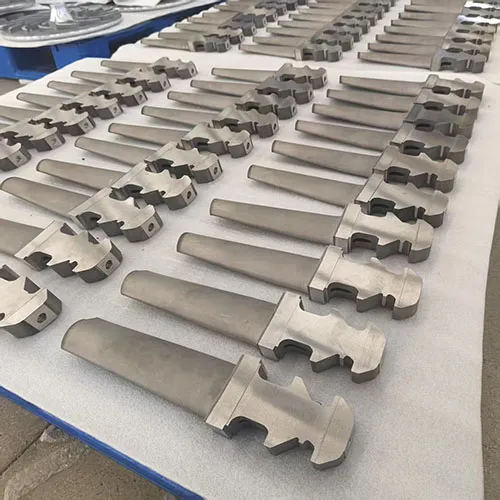

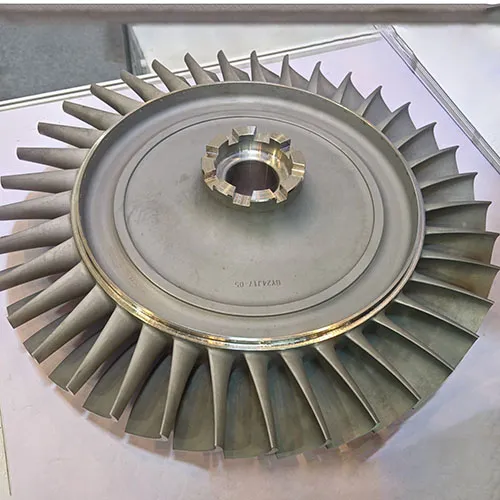

    » Turbine blades and vanes
    » Inlet guide vanes (IGVs)
    » Combustor components
    » Engine casings and housings
    » Shafts and rotating elements
    » Bearing supports
    » Exhaust diffusers
    » Fuel system components

Investment casting is widely used in turbine systems due to its ability to produce complex, high-performance geometries.

Key advantages:

    » Internal cooling channels and thin-wall structures
    » Near-net-shape manufacturing reduces machining requirements
    » High dimensional repeatability for serial production
    » Excellent surface finish for aerodynamic efficiency
    » Compatibility with high-temperature superalloys
    » Part consolidation and reduced assembly complexity

Our production system is certified to ISO 9001 quality management standards, with full process traceability.

Quality control includes:

        Heat number traceability for all superalloys
        Controlled wax pattern and ceramic shell processes
        Dimensional inspection using precision metrology
        Non-destructive testing (NDT) upon request
        Full inspection and batch documentation

We support customers from early-stage design to mass production:

        Casting feasibility analysis
        Design optimization for manufacturability
        Gating and riser system design
        Solidification simulation
        Process validation for production scaling
